FIREPLACE INSERTS

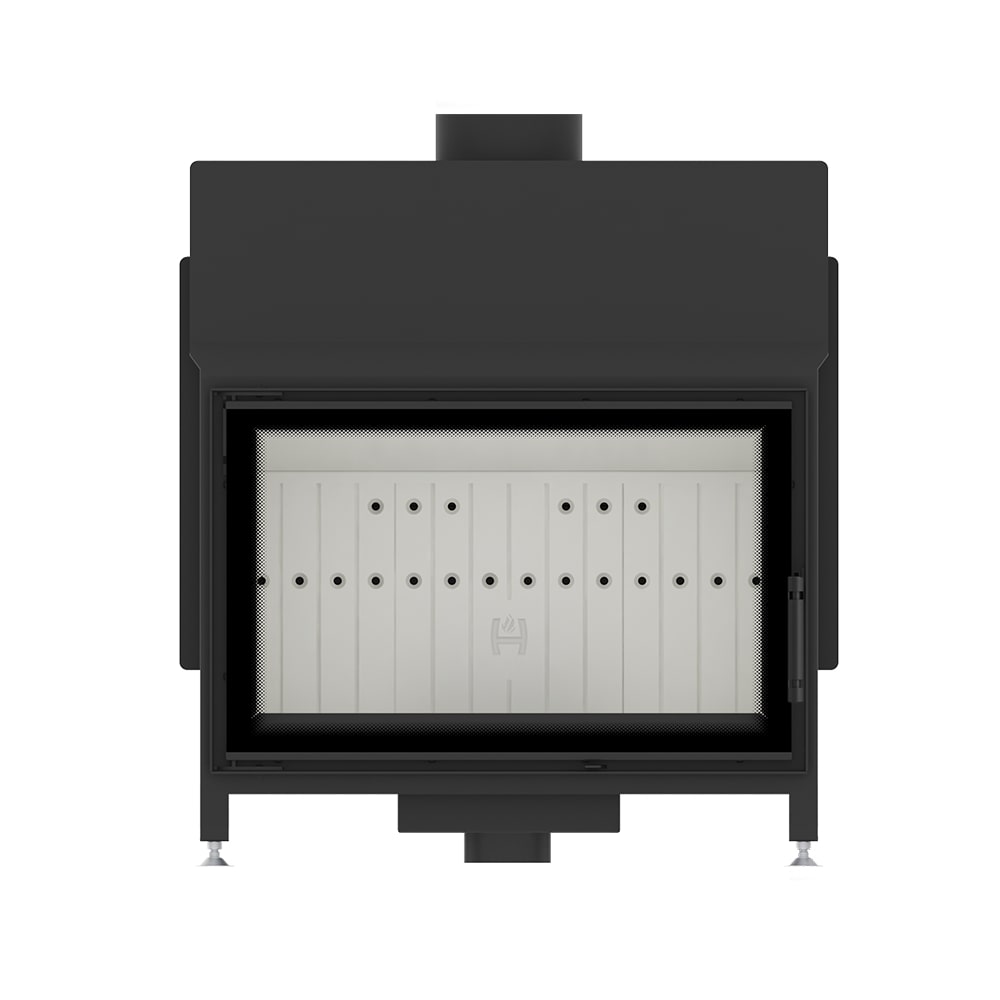

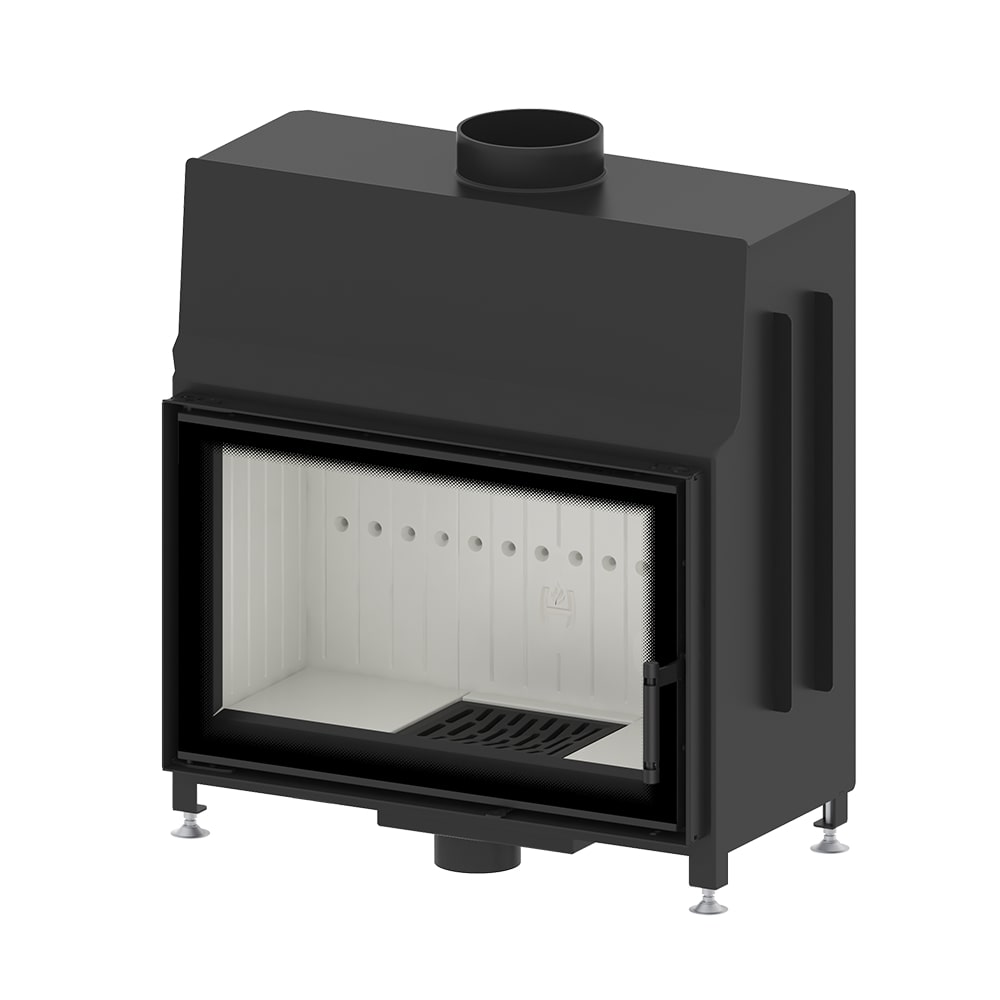

Fireplace insert Hitze STMA 68×43.S
-20% off
1,632.08€
2,040.10€
Monthly payment from 50.05€ / 60 months
We reply the same business day
Product description
- An integrated damper regulates the supply of primary and secondary air.
- Two deflectors (ceramic and steel) that optimize the combustion process by increasing the temperature in the chamber.
- The fireplace insert is made in such a way that it saves the firewood used, retains heat well inside the fireplace.
- Additional radiators increase the heated surface area.
- Combustion chamber covered with “Akubet” material – increases efficiency.
- A special profile is used to manufacture the steel parts, which ensures structural rigidity and resistance to high temperatures.
- Heat-resistant ceramic glass withstands operating temperatures up to 800 ° C.
- Cast iron grate and ash pan.
- The steel body is welded by robots using the MAG method, which ensures high quality and aesthetics.
- The insert elements are manufactured using modern CNC equipment (Laser 2D, Laser 3D, bending presses).
- Complies with BlmSchV II and ECODESIGN standards.
- Complies with the requirements of the EU Member States’ Ecodesign Directive “This product cannot be used as a primary source of heat”.
Technical data:
- Nominal power: 13 kW.
- Heating load range: 6-16 kW.
- Efficiency: 76.5%.
- Heating dust emission 13% O2 (g / m³): 0.033.
- CO emission 13% O2 (g / m ³): 0.932.
- Weight: 119 kg.
- Chimney connection diameter: 180 mm.
- Inlet diameter: 125 mm.
- Dimensions: 797 x 903 x 458 mm.
- Fireplace glass dimensions: 680 x 430 mm.
- Active draft grate mesh: 910-1040 cm².
- Active input grate mesh: 520-850 cm².
- Maximum fuel moisture: 12-20%
- Maximum wood length: 35 cm.
- Fuel: Wood, wood briquettes.
Warranty: 5 years.
Manufacturer: Hitze.
